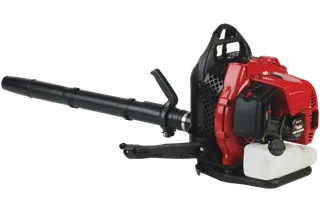

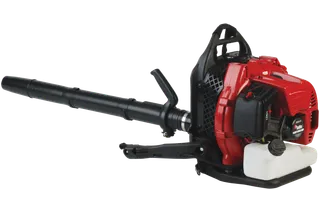

EBZ5150
For the commercial operator, RedMax is easily the industry leader in terms of the selection and performance of power blowers. The EBZ5150 backpack blower features the Strato-Charged 2-stroke engine with ultra-low emissions and high power. With a 50.2 cc displacement and 2.3 horsepower, the EBZ5150 produces a maximum air speed of 171 MPH with tube air flow approaching 487 CFM. The Max Cooled back pad uses air from the fan housing to cool operators and keep them comfortable during hot days. Super wide straps and contoured back pad are oversized for greater comfort. Comes standard with a frame mounted throttle to virtually eliminate downtime due to damaged cables.
Features
Features
Specifications
Specifications
EBZ5150Article Number: 966 35 83‑01 | |
|---|---|
| Engine | EBZ5150 Article Number: 966 35 83‑01 |
| Cylinder displacement | 3.06 cu.inch |
| Electrode gap | 0.03 in |
| Output shaft power | 2.15 hp |
| Fuel consumption | 455 g/kWh |
| Fuel tank volume | 70.9 fl oz |
| Idling speed | 2,200 rpm |
| Maximum power speed | 7,500 rpm |
| Spark Plug | TORCH AC7R, NGK CMR7H |
| Capacity | |
| Air flow in pipe | 435 cfm |
| Air flow in housing | 692.17 cfm |
| Air speed | 214.75 mph |
| Air speed (round nozzle) | 216 mph |
| Blowing Force | 20 N |
| Dimensions | |
| Product size height | 19.4 in |
| Product size length | 15.8 in |
| Tube diameter | 2.24 in |
| Weight | 22.7 lbs |
| Sound and noise | |
| Sound power level, measured | 104 dB(A) |
| Sound pressure level at operators ear | 89 dB(A) |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for EBZ5150 can be found in the product support.
Product support for EBZ5150
