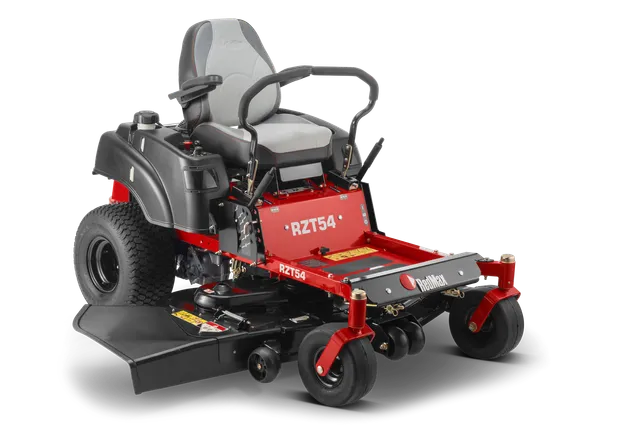

Parts, manuals and support for RZT54
All the support you need for RZT54. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax RZT54. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
RZT54 ZERO TURN 24 HP, 54", KawasakiArt no: 967 67 21‑01 | |
|---|---|
| Engine | RZT54 ZERO TURN 24 HP, 54", Kawasaki Art no: 967 67 21‑01 |
| Cylinder displacement | 44.3 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Engine name | FR Series |
| Fuel tank location | Side (Single) |
| Fuel tank volume (with reserve) | 3.5 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Power/fuel type | Gasoline |
| Equipment | |
| Cup holder | Yes |
| Seat back height | High |
| Seat spring | Yes |
| Seat type | 18" high back |
| Cutting deck | |
| Anti-scalp wheels | 4 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting deck type | 10-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting width | 54 in |
| Deck thickness | 10 gauge |
| Capacity | |
| Speed forward max | 6.5 mph |
| Speed forward min | 0 mph |
| Drive system | |
| Fan-cooled pumps | Yes |
| Transmission manufacturer | Hydro-Gear |
| Transmission model | ZT-2200 |
| Dimensions | |
| Tire size, front Diameter | 11 in |
| Tire size, front Width | 6 in |
| Base machine, height | 40 in |
| Base machine, length | 75 in |
| Base machine, width | 43.75 in |
| Weight | 640 lbs |
