Specifications

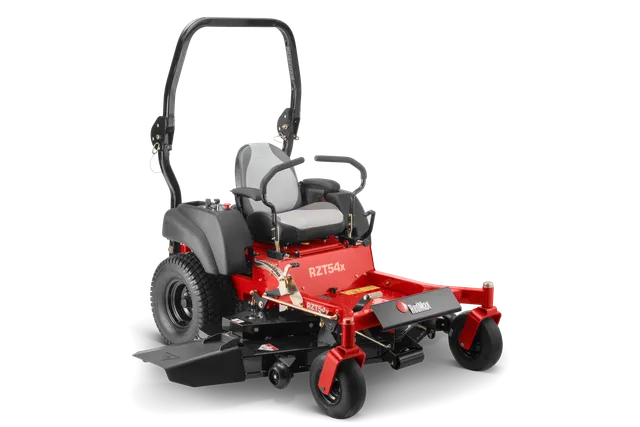

RZT54x ZERO TURN 24 HP, 54", Kawasaki

Art no: 967 67 11‑01

Engine
RZT54x ZERO TURN 24 HP, 54", Kawasaki
Art no: 967 67 11‑01
Cylinder displacement44.3 cu.inch
Cylinders2
Engine coolingAir
Engine lubrication typeFull pressure
Engine nameFR Series
Fuel tank locationSide (Single)
Fuel tank volume (with reserve)5 gal (US)
Motor/engine manufacturerKawasaki
Power/fuel typeGasoline
Equipment
Cup holderYes
Seat back heightHigh
Seat springYes
Seat typePremium High back 21" with armrest
Cutting deck
Anti-scalp wheels3
Blade engagementElectric clutch
Blades3 pcs
Cutting deck materialSteel
Cutting deck type10-gauge fabricated
Cutting methodsCollect/Mulch/Side discharge
Cutting width54 in
Deck thickness10 gauge
Capacity
Speed forward max8.5 mph
Speed forward min0 mph
Drive system
Fan-cooled pumpsYes
Transmission manufacturerHydro-Gear
Transmission modelZT 3100
Dimensions
Tire size, front Diameter13 in
Tire size, front Width5 in
Base machine, height46 in
Base machine, length81 in
Base machine, width67 in
Weight740 lbs
