1/4

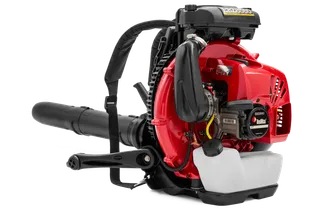

EBZ8560
With the RedMax EBZ8560 backpack blower, moving lawn clippings, leaves and other heavy debris are a breeze. This frame-mount backpack blower produces 1,000 CFM of air volume at speeds of 220 MPH at the nozzle, making it faster to clear large areas. In addition, the RedMax EBZ8560 is equipped with a large fuel tank so you can keep on going without having to go back to the trailer to refuel.
Specifications
Specifications
Left Hand Throttle, "MKIII", NAArticle Number: 970 49 93‑01 | |
|---|---|
| Engine | Left Hand Throttle, "MKIII", NA Article Number: 970 49 93‑01 |
| Cylinder displacement | 4.6 cu.inch |
| Electrode gap | 0.03 in |
| Output shaft power | 4.59 hp |
| Fuel consumption | 464 g/kWh |
| Fuel tank volume | 77.77 fl oz (US) |
| Idling speed | 2,000 rpm |
| Maximum power speed | 7,450 rpm |
| Spark Plug | NGK CMR7H |
| Capacity | |
| Air flow in pipe | 1,000 cfm |
| Air flow in housing | 1,200 cfm |
| Air speed (round nozzle) | 220 mph |
| Blowing Force | 47 N |
| Dimensions | |
| Product size height | 21.69 in |
| Product size length | 14.09 in |
| Tube diameter | 3.386 in |
| Weight | 25.5 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound power level, measured | 113 dB(A) |
| Sound pressure level at operators ear | 106 dB(A) |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for EBZ8560 can be found in the product support.
Product support for EBZ8560
