1/1
1.55 cu.inch
Cylinder displacement
1.27 hp
Output shaft power
8.82 lbs
Weight (excl. cutting equipment)
EXZ260S-PH
Specifications
Specifications

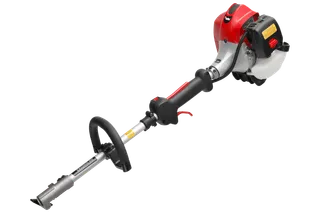

EXZ260S-PH TRIMMERArticle Number: 967 09 46‑01 | |
|---|---|
| Engine | EXZ260S-PH TRIMMER Article Number: 967 09 46‑01 |
| Cylinder displacement | 1.55 cu.inch |
| Clutch engagement speed (±120) | 4,000 rpm |
| Electrode gap | 0.03 in |
| Fuel consumption | 450 g/kWh |
| Fuel tank volume | 22.32 fl oz |
| Idling speed | 3,000 rpm |
| Output shaft power | 1.27 hp |
| Spark Plug | NGK BPMR8Y |
| Torque, max. | 1.24 Nm |
| Torque, max. at rpm | 7,000 rpm |
| Emission | |
| Exhaust emissions (CO average) CARB | 354.3 g/kWh |
| Dimensions | |
| Weight (excl. cutting equipment) | 8.82 lbs |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for EXZ260S-PH can be found in the product support.
Product support for EXZ260S-PH
