1/9
Kawasaki
Motor/engine manufacturer
FX1000V EFI
Motor/engine model
60 in
Cutting width
CZT60TX

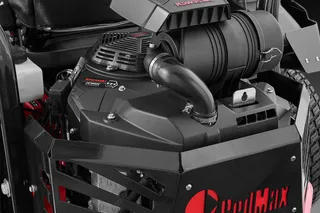

Experience the ultimate in cutting power with the RedMax CZT60TX zero-turn mower. This commercial quality mower delivers maximum performance with the high horsepower 38.5 HP Kawasaki FX1000 EFI engine. By limiting RPM droop, the engine maintains high blade speeds, even during heavy use. Built to last with a 60" 7-gauge deck, heavy-duty cast iron blade spindles and a welded steel chassis.
Features
Features
Specifications
Specifications
CZT60TX ZERO TURN 38.5 HP Kawasaki FX, 60" Fabricated DeckArticle Number: 970 64 11‑01 | |
|---|---|
| Engine | CZT60TX ZERO TURN 38.5 HP Kawasaki FX, 60" Fabricated Deck Article Number: 970 64 11‑01 |
| Cylinder displacement | 61 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Engine name | FX Series V-Twin |
| Fuel tank location | Side (Dual) |
| Fuel tank volume (with reserve) | 10 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Power/fuel type | Gasoline |
| Equipment | |
| Cup holder | Yes |
| Seat back height | High |
| Seat spring | No |

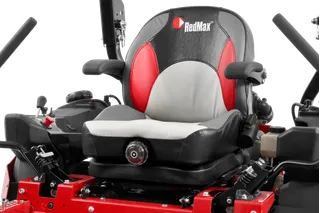

| Seat type | Premium, suspension |

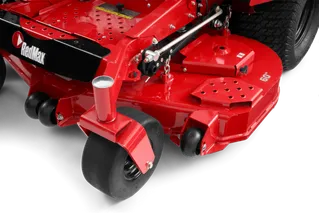

| Cutting deck | |
| Anti-scalp wheels | 6 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting deck type | 7-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting width | 60 in |
| Deck thickness | 7 gauge |
| Capacity | |
| Speed forward max | 12 mph |
| Drive system | |
| Transmission manufacturer | Hydro-Gear |
| Transmission model | ZT 5400 |
| Dimensions | |
| Base machine, height | 46 in |
| Base machine, length | 81 in |
| Base machine, width | 53.5 in |
| Weight | 1,342 lbs |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for CZT60TX can be found in the product support.
Product support for CZT60TX
