1/1
Kawasaki
Motor/engine manufacturer
FS651V
Motor/engine model
54 in
Cutting width
CZTE54

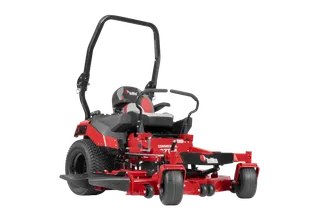

RedMax brings commercial capability and affordability together in the CZTE platform. Designed with the landscaper in mind, the CZTE provides commercial performance at a fraction of the cost. Commercial duty engines and drivetrains coupled with heavy duty frames provide reliability day after day, season after season. Excellent weight balance and an ergonomic layout provide ease of operation under the toughest mowing conditions, making short work out of big jobs. (CZTE60 shown)
Features
Features
Specifications
Specifications
CZTE54 ZERO TURN 22 HP Kawasaki FS, 54" Fabricated DeckArticle Number: 970 53 49‑01 | |
|---|---|
| Engine | CZTE54 ZERO TURN 22 HP Kawasaki FS, 54" Fabricated Deck Article Number: 970 53 49‑01 |
| Cylinder displacement | 44.3 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Engine name | FS Series V-Twin |
| Fuel tank location | Side (Dual) |
| Fuel tank volume (with reserve) | 10 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Power/fuel type | Gasoline |
| Equipment | |
| Cup holder | Yes |
| Seat back height | High |
| Seat type | Professional |
| Cutting deck | |
| Anti-scalp wheels | 4 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting deck type | 10-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting width | 54 in |
| Deck thickness | 10 gauge |
| Capacity | |
| Speed forward max | 10 mph |
| Drive system | |
| Transmission manufacturer | Parker |
| Transmission model | HTE10 |
| Dimensions | |
| Base machine, height | 49.25 in |
| Base machine, length | 76.5 in |
| Base machine, width | 49.5 in |
| Weight | 974 lbs |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for CZTE54 can be found in the product support.
Product support for CZTE54
