1/3
Kawasaki
Motor/engine manufacturer
FR730V
Motor/engine model
54 in
Cutting width

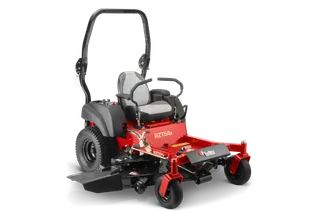

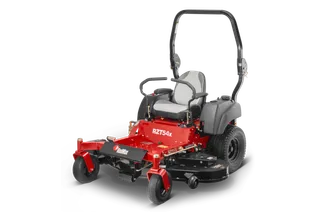

RZT54x
Bringing the commercial focus to the farm and large estate, the RZTx is ready to handle the largest landowner’s mowing requirements. Developed from the commercial CZT, the RZTx cuts the large weekend chore into a quick operation. A robust selection in engine, drivetrain, decks and components deliver commercial-like capability at home. Perfectly balanced for superior traction, featured with standard roll-over protection and seat belts, difficult terrain is no problem for the landowner. Accessories for mulch, collection, and towing make the RZTx the versatile weekend work partner.
Specifications
Specifications
RZT54x ZERO TURN AU/NZ/USA49/CanadaArticle Number: 967 67 11‑02 | |
|---|---|
| Engine | RZT54x ZERO TURN AU/NZ/USA49/Canada Article Number: 967 67 11‑02 |
| Cylinder displacement | 44.3 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Pressure with Oilfilter |
| Engine name | FR Series |
| Fuel tank location | Side (Single) |
| Fuel tank volume (with reserve) | 5 gal (US) |
| Motor/engine manufacturer | Kawasaki |
| Power/fuel type | Gasoline |
| Equipment | |
| Cup holder | Yes |
| Seat back height | High |
| Seat spring | Yes |
| Seat type | Premium High back 21" with armrest |
| Cutting deck | |
| Anti-scalp wheels | 3 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Cutting deck material | Steel |
| Cutting deck type | 10-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting width | 54 in |
| Deck thickness | 10 gauge |
| Capacity | |
| Speed forward max | 8.5 mph |
| Speed forward min | 0 mph |
| Drive system | |
| Fan-cooled pumps | Yes |
| Transmission manufacturer | Hydro-Gear |
| Transmission model | ZT 3100 |
| Dimensions | |
| Tire size, front Diameter | 13 in |
| Tire size, front Width | 5 in |
| Base machine, height | 46 in |
| Base machine, length | 81 in |
| Base machine, width | 67 in |
| Weight | 740 lbs |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for RZT54x can be found in the product support.
Product support for RZT54x
